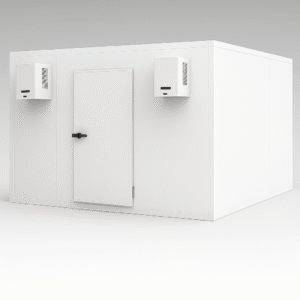

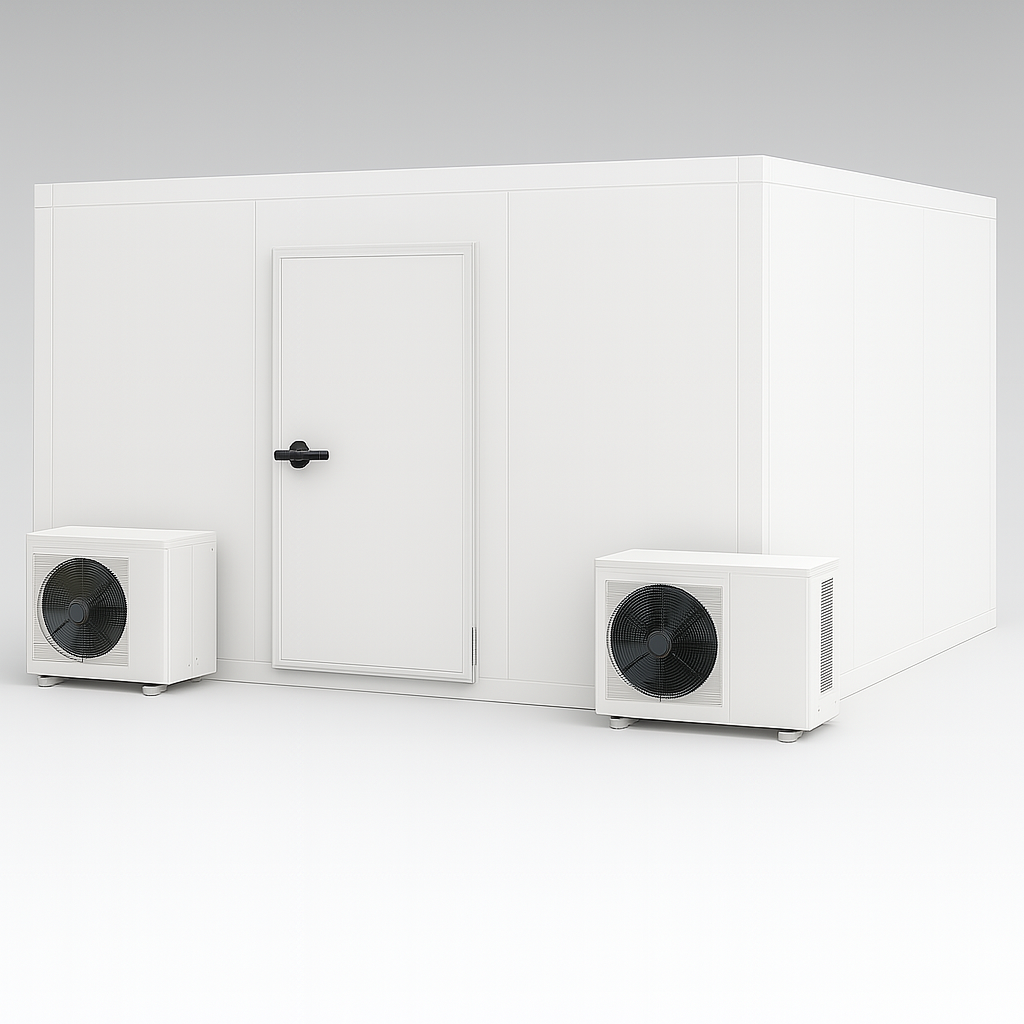

WIC 20 & WIF 20 – Vaccine Cold and Freezer Rooms (20m³)

Description

The 20 cubic meter walk-in cold and freezer rooms with split-type refrigeration systems provide a robust and flexible solution for precise temperature-controlled storage. Ideal for medical facilities, food industries, agriculture, and laboratories, these units are designed for operation in ambient conditions up to +43°C. The split configuration allows the compressor unit to be installed externally, reducing interior noise and heat, and offering greater layout flexibility.

Cold Room (20m³ – Split Type)

Temperature Range: +2°C to +8°C
Dimensions (W×D×H): 3750 × 3000 × 2300 mm
Insulation Thickness: 100 mm polyurethane (U-value 0.23 W/m²K)
Refrigeration Unit: Split-type, air-cooled, R449A refrigerant
Power Supply: 220/400V, 50Hz
Features:

• Prefabricated panel system with Camlock connectors for rapid assembly

• Polyester-coated steel panel finish (interior and exterior)

• Anti-slip fiberglass-reinforced plywood floor surface

• Five-tier hygienic plastic shelving, fully adjustable

• LED lighting with IP67-rated external switch

• Plastic strip curtain at the entrance to minimize air loss

• Heavy-duty door with industrial handle and secure locking

• Dial thermometer and integrated alarm system

• Surge protection and cold climate protection

Freezer Room (20m³ – Split Type)

Temperature Range: –15°C to –25°C
Dimensions (W×D×H): 3750 × 3000 × 2300 mm
Insulation Thickness: 150 mm polyurethane (U-value 0.15 W/m²K)
Refrigeration Unit: Split-type, air-cooled, R452A refrigerant
Power Supply: 220/400V, 50Hz
Features:

• Modular insulated panels with high-density polyurethane core

• Heated door frame and pressure relief valve for stable freezing performance

• Same robust flooring and adjustable hygienic shelving system

• Auto-defrost functionality and internal alarm integration

• Suitable for installations in hot, temperate, or cold climates

• Quiet operation and external compressor placement for enhanced indoor comfort

This configuration ensures optimal performance for chilled and frozen storage needs in compact, high-demand environments.
