WIC 10 & WIF 10 – Vaccine Cold and Freezer Rooms (10m³)

Description

ReefCool supplies  WIC 10 and WIF 10 vaccine-grade cold and freezer rooms – compact 10m³ units designed for secure, high-performance temperature-controlled storage in medical, research, and humanitarian applications.

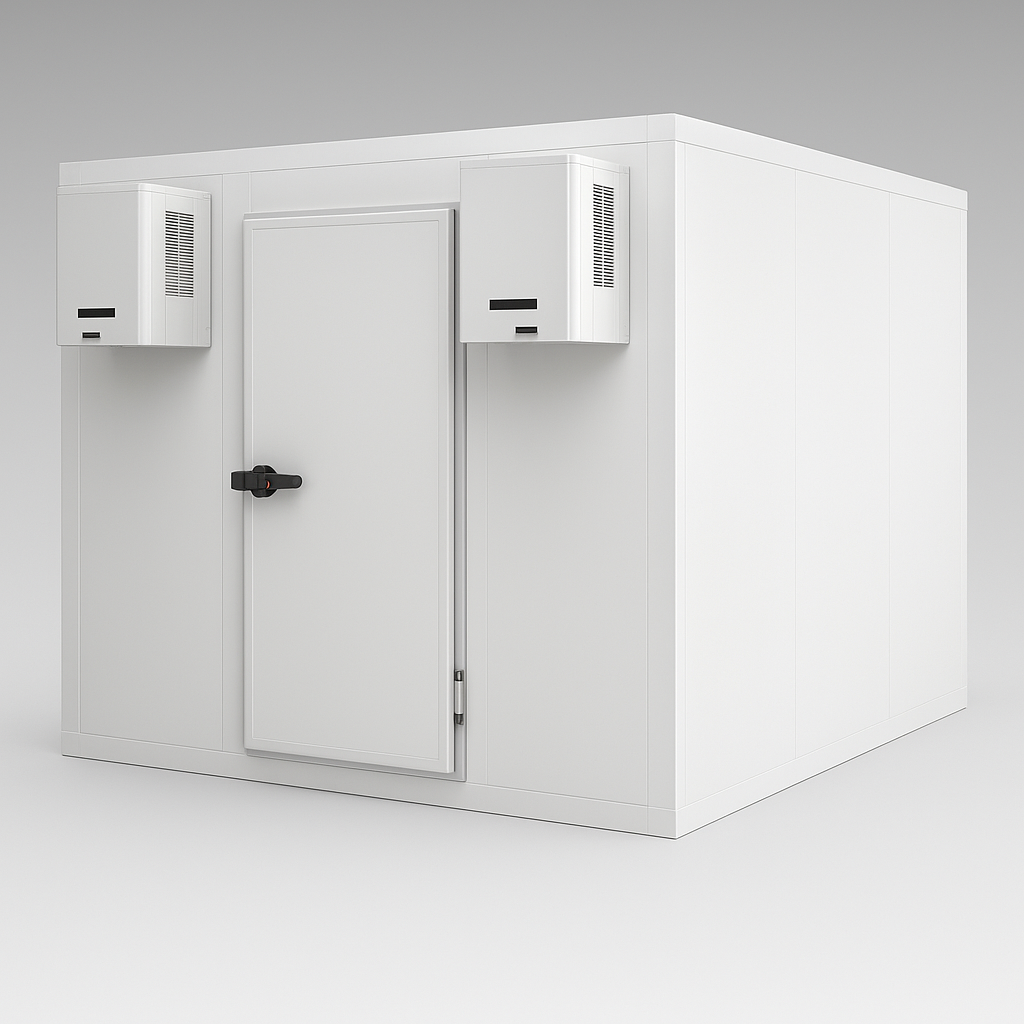

WIC 10 – Walk-In Cold Room (10m³)

• Internal temperature range: +2°C to +8°C

• External dimensions: 2700 x 2100 x 2300 mm (W x D x H)

• Insulation: 100 mm polyurethane (U-value: 0.23 W/m²K)

• Refrigeration unit: Monoblock or split-type, air-cooled

• Refrigerant: HFC-free R449A

• Power supply: 230V, 50Hz | Fuse: 10A

• Ambient operation: Up to +43°C

• Applications: Vaccines, pharmaceuticals, and biologicals

WIF 10 – Walk-In Freezer Room (10m³)

• Internal temperature range: -15°C to -25°C

• Insulation: 150 mm polyurethane (U-value: 0.15 W/m²K)

• Refrigeration unit: Monoblock or split-type

• Refrigerant: HFC-free R452A

• Power supply: 220/400V, 50Hz | Fuse: 3×16A

• Includes: Door frame heater, pressure relief valve

• Safety: Dual refrigeration units for redundancy

Shared Features & Equipment:

• Dual refrigeration system with automatic/manual changeover

• Fully adjustable plastic shelving (5 levels, self-standing)

• Polyester-coated steel surfaces and anti-slip floor finish

• Heavy-duty insulated door (800×2000 mm) with S01 model hardware

• LED lighting (IP67), dial thermometer, strip curtain, plume guard

• Surge protection, auto-defrost, and cold climate protection

• Optional temperature recorder & spare part package for 2 years
