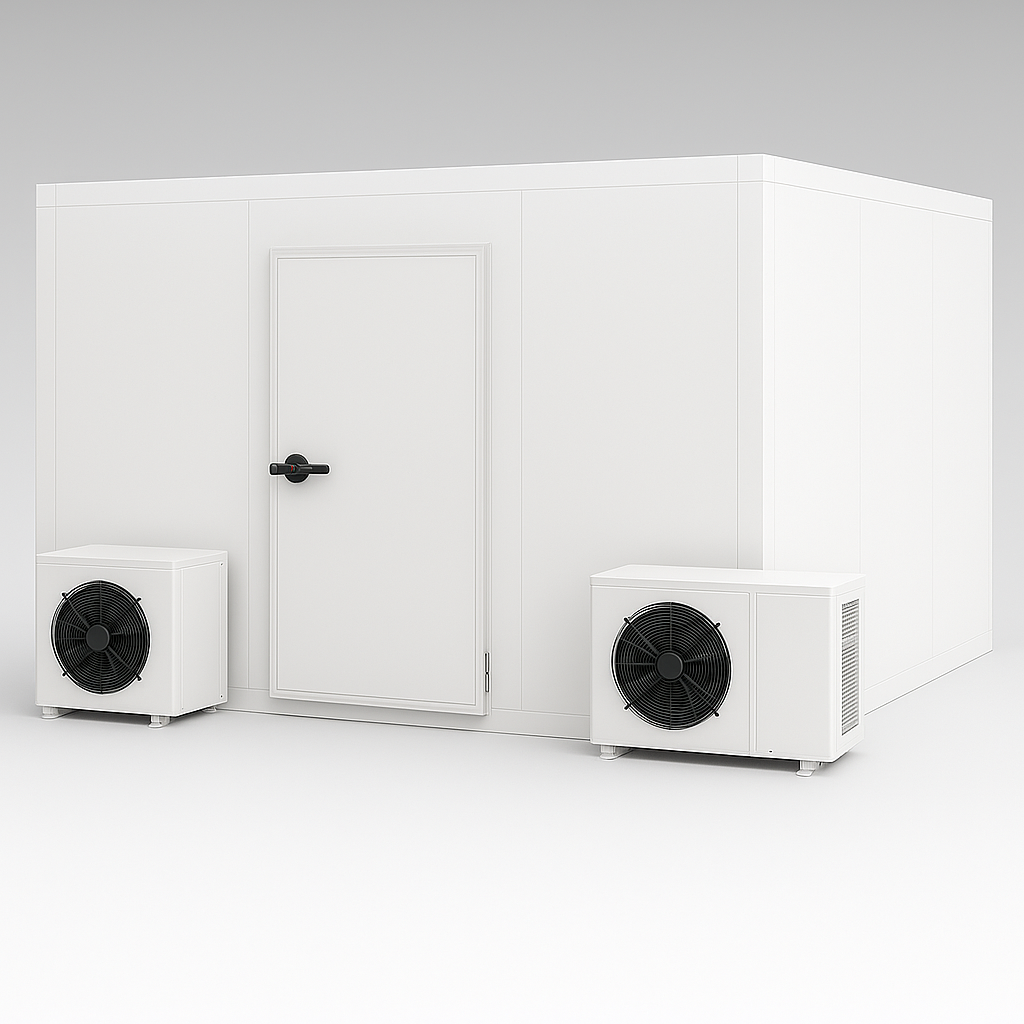

WIC 10 & WIF 10 – Vaccine Cold and Freezer Rooms (10)

Description

Compact and efficient, the 10 cubic meter walk-in cold and freezer rooms are designed for facilities requiring reliable temperature-controlled storage in limited spaces. Equipped with split-type air-cooled refrigeration systems, these units ensure quiet operation, flexible installation, and stable performance under varying ambient conditions up to +43°C. Suitable for use in medical storage, hospitality, laboratories, and food service operations.

Cold Room (10m³ – Split Type)

Temperature Range: +2°C to +8°C
Dimensions (W×D×H): 2700 × 2100 × 2300 mm
Insulation Thickness: 100 mm polyurethane (U-value 0.23 W/m²K)
Refrigeration Unit: Split-type, air-cooled, R449A refrigerant
Power Supply: 220/400V, 50Hz
Features:

• Camlock-connected panel structure for rapid installation

• Interior and exterior finished with polyester-coated steel

• Floor with non-slip fiberglass-reinforced plywood surface

• Fully adjustable 5-level hygienic plastic shelving

• LED lighting with external IP67-rated switch

• Secure door with industrial handle and safety lock

• Strip curtain to minimize cold air loss at entry

• Integrated dial thermometer and alarm system

• Cold climate protection and electrical surge protection

Freezer Room (10m³ – Split Type)

Temperature Range: –15°C to –25°C
Dimensions (W×D×H): 2700 × 2100 × 2300 mm
Insulation Thickness: 150 mm polyurethane (U-value 0.15 W/m²K)
Refrigeration Unit: Split-type, air-cooled, R452A refrigerant
Power Supply: 220/400V, 50Hz
Features:

• Same modular Camlock panel design for ease of setup

• Thickened insulation for efficient freezing

• Heated door frame and pressure relief valve

• Hygienic plastic shelving and LED lighting system

• Auto-defrost functionality and integrated safety alarm

• Split-type design allows outdoor condenser installation for noise control

• Fully equipped with protection systems for harsh environments

Both rooms are engineered to provide stable internal temperatures and operational reliability for sensitive or perishable goods, even in hot or variable climates.
